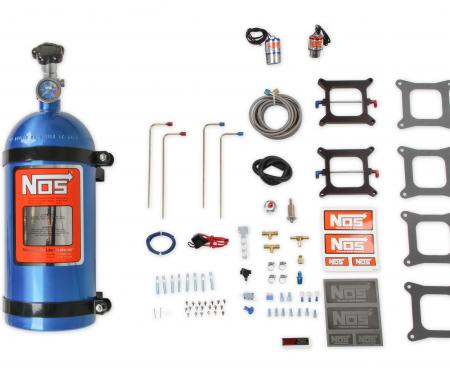

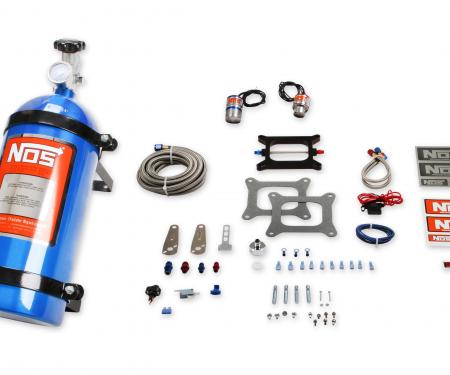

Partial Kit - Used in 05030NOS - Includes: Fogger Nozzles, #18 Jets, #20 Jets, Distribution Blocks, Fittings & Hardware
Features:
- Partial Kit for Custom 4-Cylinder NOS Systems
- Adjustable Power Levels
- Precise Injection Of Fuel/Nitrous
- Superior Atomization and Tuning
To supply the carburetor and the Sportsman Fogger System in carbureted applications, use a fuel pump designed to operate between 5 and 10 psi with a flow rate of 0.1 gallons per hour per horsepower at 6 psi. Fuel injected applications will require a fuel pump that flows at least 0.1 gallons per hour at system pressure. For example at 42 psi flowing, a motor that makes 450 hp while the nitrous system is activated will require at least 45 g.p.h. at 42 psi flowing, and going down the track.
Installation Notes:
To supply the carburetor and the Sportsman Fogger System in carbureted applications, use a fuel pump designed to operate between 5 and 10 psi with a flow rate of 0.1 gallons per hour per horsepower at 6 psi. Fuel injected applications will require a fuel pump that flows at least 0.1 gallons per hour at system pressure. For example at 42 psi flowing, a motor that makes 450 hp while the nitrous system is activated will require at least 45 g.p.h. at 42 psi flowing, and going down the track.
