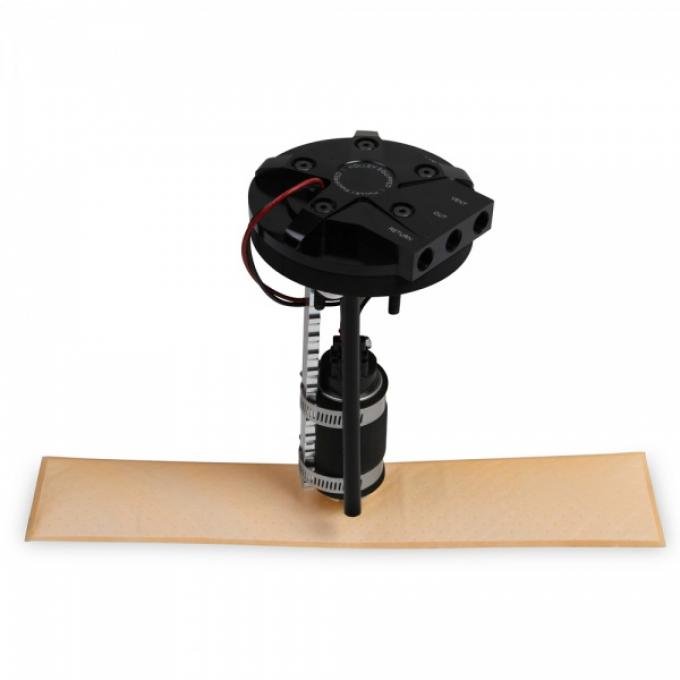

Holley Sniper 450 LPH Return Style In-Tank Fuel Module

Holley Sniper 450 LPH Return Style In-Tank Fuel Module
Holley Sniper 450 LPH Return Style In-Tank Fuel ModuleHolley Sniper 450 LPH Return Style In-Tank Fuel ModuleHolley Sniper 450 LPH Return Style In-Tank Fuel ModuleHolley Sniper 450 LPH Return Style In-Tank Fuel ModuleHolley Sniper 450 LPH Return Style In-Tank Fuel ModuleHolley Sniper 450 LPH Return Style In-Tank Fuel ModuleHolley Sniper 450 LPH Return Style In-Tank Fuel ModuleHolley Sniper 450 LPH Return Style In-Tank Fuel ModuleHolley Sniper 450 LPH Return Style In-Tank Fuel ModuleHolley Sniper 450 LPH Return Style In-Tank Fuel ModuleHolley Sniper 450 LPH Return Style In-Tank Fuel ModuleHolley Sniper 450 LPH Return Style In-Tank Fuel ModuleHolley Sniper 450 LPH Return Style In-Tank Fuel ModuleHolley Sniper 450 LPH Return Style In-Tank Fuel ModuleHolley Sniper 450 LPH Return Style In-Tank Fuel ModuleHolley Sniper 450 LPH Return Style In-Tank Fuel ModuleHolley Sniper 450 LPH Return Style In-Tank Fuel ModuleHolley Sniper 450 LPH Return Style In-Tank Fuel ModuleHolley Sniper 450 LPH Return Style In-Tank Fuel ModuleHolley Sniper 450 LPH Return Style In-Tank Fuel Module
$1,759.99 kt
NEWARRIVING SOONEstimated Ship Date 12/03/2024 (If Ordered Today)
Model: 3169993
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

KEY FEATURES &amp BENEFITS:
  • 450LPH Return Style In-Tank Fuel Pump Conversion Kit
  • The Easiest Way To Convert Your Vehicle To An In-Tank, EFI Fuel System
  • Installs In Any Fuel Tank From 7" To 12" Deep To Fit A Wide Variety Of Applications
  • The Low Profile Design Is Only 1.275" Thick Above The Tank Mounting Surface For Added Clearance When Needed
  • The Innovative Clamping System Allows You To Locate The Module Anywhere In The Tank Beside Your Existing Sending Unit
  • The Clamping System Allows You To Rotate The Unit 360 Degrees For Easier Clocking Of The Plumbing And Wiring Locations Under Your Ride
  • Includes Innovative Holley Hydramat To Ensure Consistent Fuel Supply. The 3"x15" HydraMat Mounting Flange Has 6 Clocking Pin Locations To Allow For 360 Degree Adjustment To Clear Sending Unit Levels Or Any Tank Floor Restrictions That You Might Encounter
  • Black Anodized Aluminum Construction For Corrosion Resistance And Long Lasting Good Looks
  • 1/4" NPT Ports For A Wide Variety Of Plumbing Applications
  • Ideal For ANY EFI Conversion
  • Notes: Installation Requires The Following Items Which Are NOT Included - Holley HP Billet Filter or Equivalent, Fuel Hose &amp Fittings (Threads In Pump Are 1/4" NPT), &amp Relay Kit (30 AMP With A Minimum Of 12 Gauge Wire).

SPECIFICATIONS:
  • Quality Level: High Performance Upgrade
  • Sending Unit Included: No
  • Flow Rate: 450 LPH (Liters Per Hour)
  • Max Pressure: 60 PSI
  • Max HP Supported: 875HP (EFI) or1100 (Carbureted) @ 60 PSI at 13.5 Volts / 10.4 AMP Draw
  • Fuel System Type: Return Style Only
  • Works With Returnless Fuel Systems: No
  • Inlet Size &amp Outlet Size 1/4 In. NPT
  • Inlet &amp Outlet Quantity: One
  • Inlet &amp Outlet Attachment: Female Threads
  • Dimensions: Fits Fuel Tanks From 7" to 12" Deep.
  • What's In The Box: 450LPH Fuel Pump, Fuel Pump Hanger Assembly, Foam Gasket Ring, 24" Long Foam Spacer Strips, Pump Clamps, Hose Clamps, Fuel Pump Module, 3" x 15" Holley HdraMat, Installation Instructions
  • Where It's Made: USA
  • Manufacturer Limited Warranty: 90-Day
  • Product Weight: 3.5lbs.
  • Product Dimensions: 18.25" x 5.88" x 6.06"
  • Approx. Installation Time: 4-5 Hours, Experienced Mechanic Times Quoted, Yours May Take Longer
  • Installation Difficulty: Difficult, Seek Professional Installation

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years
Chevrolet Bel Air 1958 - 1981
Chevrolet Biscayne 1958 - 1972
Chevrolet Caprice 1966 - 1985
Chevrolet Estate 1969 - 1970
Chevrolet Impala 1958 - 1985
Chevrolet Nomad 1958 - 1960
Chevrolet Parkwood 1959 - 1960
Chevrolet Townsman 1969 - 1972
