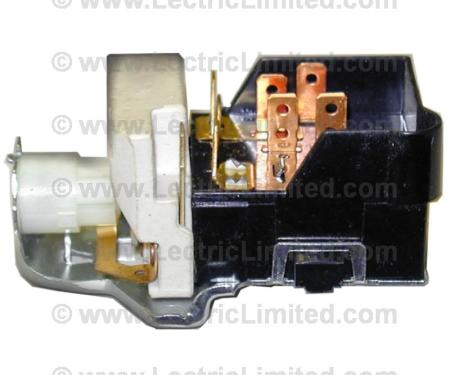

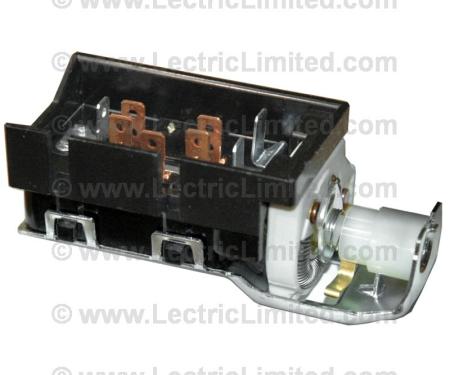

Chevy Headlight Switch, Original Style 6-Volt, 1949-1954

Chevy Headlight Switch, Original Style 6-Volt, 1949-1954
$110.99 ea
NEWARRIVING SOONEstimated Ship Date 12/09/2024 (If Ordered Today)
Model: 3169764
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

  • Premium Quality Headlight Switch
  • Replaces Original Exactly
  • For 6 Volt Systems

Your 1949, 1950, 1951, 1952, 1953 or 1954 Chevrolet was meant to be seen. It's obvious that every time you pull into a gas station or get a crowd at the local car show, your baby really turns heads. Well, the same is true when driving at night. However, you're finding that your is not turning heads, because no one sees you coming! Not only is having a faulty headlight switch deterring positive attention, but it is dangerous when driving at night. Over the years, these switches deteriorate leading to bad rheostats or outright failure. Symptoms that your may exhibit include a burning electrical smell from your dash when your headlights are on, inability to dim or adjust your instrument panel lights, faulty movement of the mechanical parts, or flickering of the lights. Even though your headlight switch is fairly simple to replace, we always recommend consulting your service shop manual. First, you will need to access the back of the switch where you will find a small 1/4 inch button. Pull the knob while simultaneously pressing the little button. Your headlight knob should then come out. Next, unscrew the round nut that holds the switch to the dash. Pull the switch out from behind the dash and unplug it from the harness. Then, just reverse the actions to re-install. It's that easy. After all, your baby deserves the best.

While you may or may not actually need to change your vintage car's earlier 6-volt battery system, the 12-volt charging systems established themselves well in later years, becoming the industry standard in 1955. While the increase in horsepower is great, the 12-volt system can be especially beneficial if you're having trouble starting your vehicle. The 12-volt system has superior compression ratios over the 6-volt, helping start your car when the engine is hot due to increased cranking power. 12-volt systems are also a necessity for many later accessories such as certain radios, air conditioning or halogen headlights, which cannot be run on 6-volt battery systems simply because they don't have the power to run such accessories.

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years
Chevrolet Bel Air 1950 - 1954
Chevrolet Fleetline 1949 - 1952
Chevrolet One-Fifty Series 1953 - 1954
Chevrolet Styleline Deluxe 1949 - 1952
Chevrolet Styleline Special 1949 - 1952
Chevrolet Two-Ten Series 1953 - 1954
