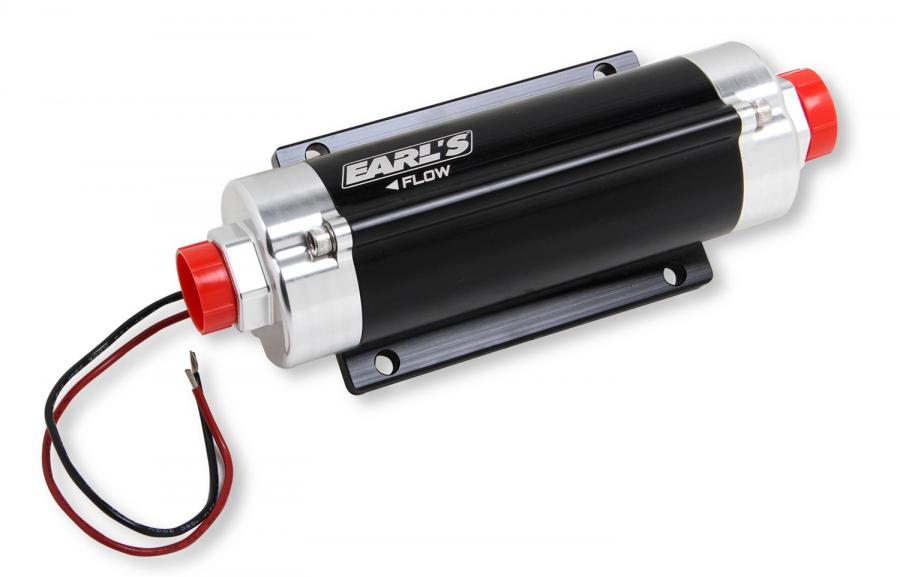

Earl's 65 GPH HP in-Line Fuel Pump 1200600ERL

• Billet aluminum construction for durability & good looks
• -10 an O-ring inlet and -8 an O-ring outlet for high flow and superior sealing
• Excellent for use with carbureted or EFI applications
• Fully submersible in-tank for custom applications, space savings and less plumbing
• Compatible with 12v to 18.5v systems for street or race use
• Compact (7.5” long x 3” wide x 2.75” tall) for easy installation on frame rails or other tight areas
• Proven durability beyond 3,000 hours in gasoline
• Weighs only 3.1 lbs.
• 10 AMP maximum amp draw
• Not designed for use on aircraft of any type.

These pumps do not have an internal bypass. A bypass style regulator and return line are required.

NOT FOR USE WITH METHANOL!

Will not work with E-85 or Diesel

This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump. Example: Part # AT981508ERL. Use of this style fitting will block flow and WILL lead to poor performance and pump failure. The ONLY correct fitting to use is a contoured port fitting with an O-ring seal such as :Part # AT985081ERL.
